Oxford Journey Stand Aid
Maximum User Weight: 155kg (24.5 stone)

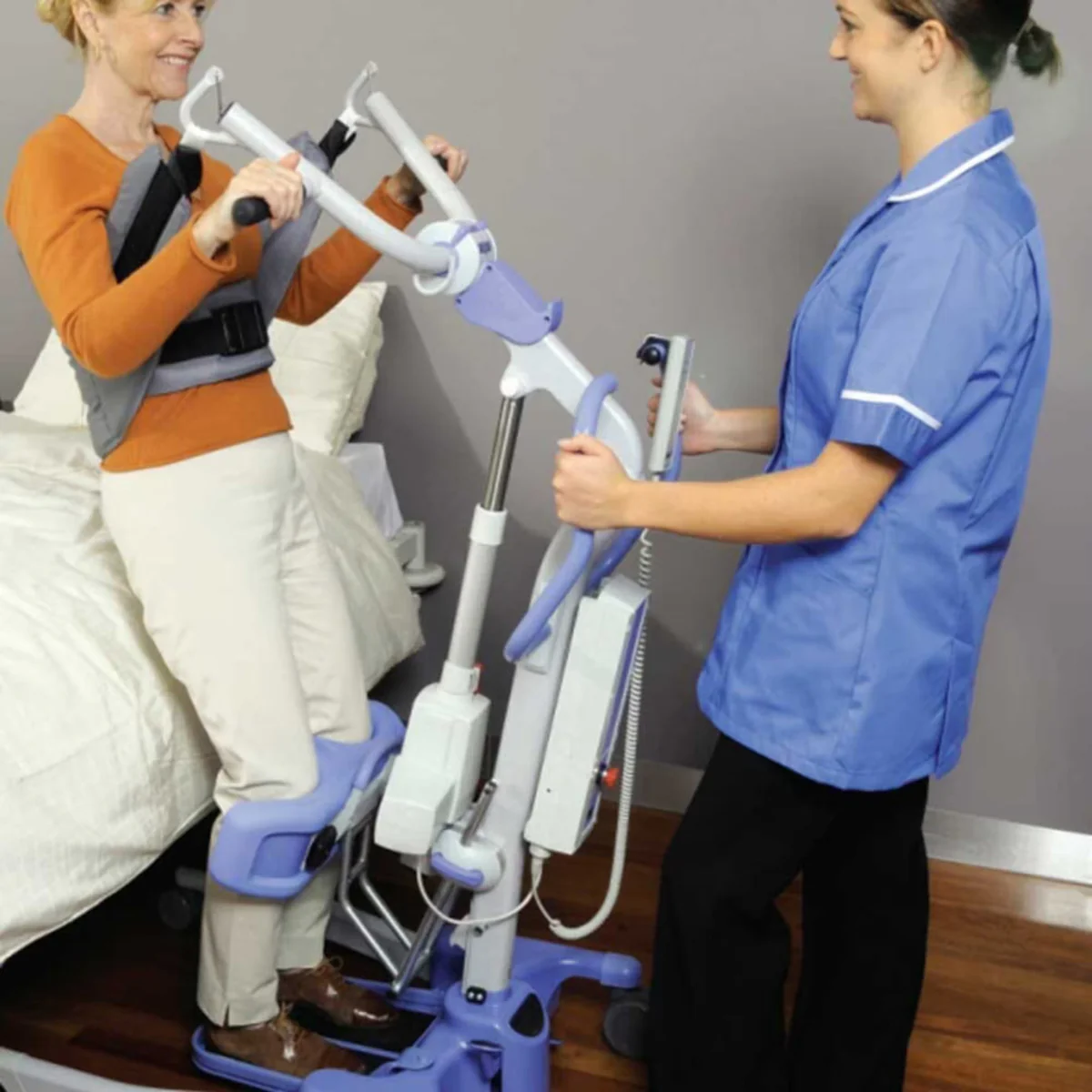

The Oxford Journey Stand Aid is an innovative and compact electric stand aid designed to help individuals who struggle to stand from a seated position. Lightweight and easy to manoeuvre, it is ideal for home or care environments where space is limited.

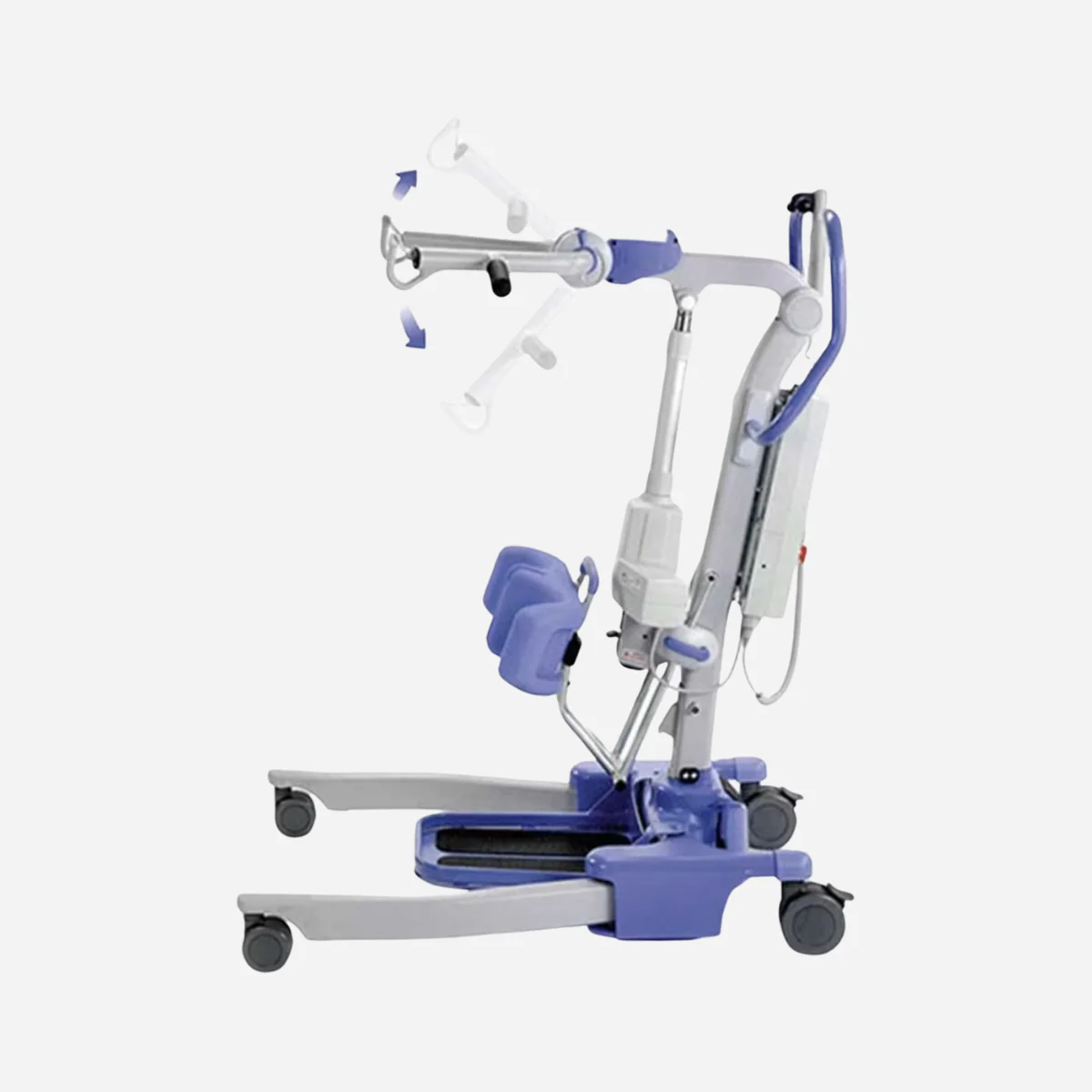

Its unique adjustable cow-horn mechanism, height-adjustable knee pad, and detachable foot tray provide flexible support for users of various heights and sizes, promoting comfort and independence. The removable foot tray also allows for standing and walking rehabilitation exercises.
The integrated Smart™ Monitor system records each lift’s actuator work and advises on maintenance schedules, ensuring the device remains in peak condition. Robustly built, the Oxford Journey Stand Aid has a safe working load of up to 155kg (24.5 stone) and comes with a 5-year warranty for long-term reassurance.
Specifications:
- Stand Aid Weight with Battery: 40.2kg (88.6 lbs)
- Maximum Length: 100cm (39.4")
- Minimum Length: 93.5cm (36.8")
- Maximum Height: 160cm (63")
- Minimum Height: 113cm (44.5")
- Height (Folded): 52.5cm (20.5")
- Depth (Folded): 104cm (41")
- Widest Point (Between Support Handles): 68cm (26.8")
- Max Height to Attachment Point: 153cm (60.2")
- Min Height to Attachment Point: 72cm (28.4")
- Turning Radius: 114.5cm (45.1")
- Legs Open - External Width: 97cm (38.2")
- Legs Open - Internal Width: 87.5cm (34.5")
- Legs Closed - External Width: 68.5cm (27")
- Legs Closed - Internal Width: 59cm (22.2")
- Overall Height of Legs: 11cm (4.3")
- Ground Clearance: 3cm (1.2")
- Front Twin Castors: 7.5cm (3")
- Rear Braked Castors: 10cm (4")
- Safe Working Load: 155kg (24.5 stone)
- 5-year manufacturer’s warranty
Key Features:
- Assists individuals with difficulty standing from a seated position
- Compact and lightweight for easy manoeuvrability in tight spaces
- Folds quickly and easily for storage and transportation
- Supports a wide range of patient heights and sizes
- Height-adjustable knee pad and detachable foot tray for enhanced support
- Smart™ Monitor system tracks actuator work and advises on maintenance
- Safe working load of up to 155kg (24.5 stone) for robustness and reliability
- 5-year warranty on hoist, actuator, and control box for peace of mind
